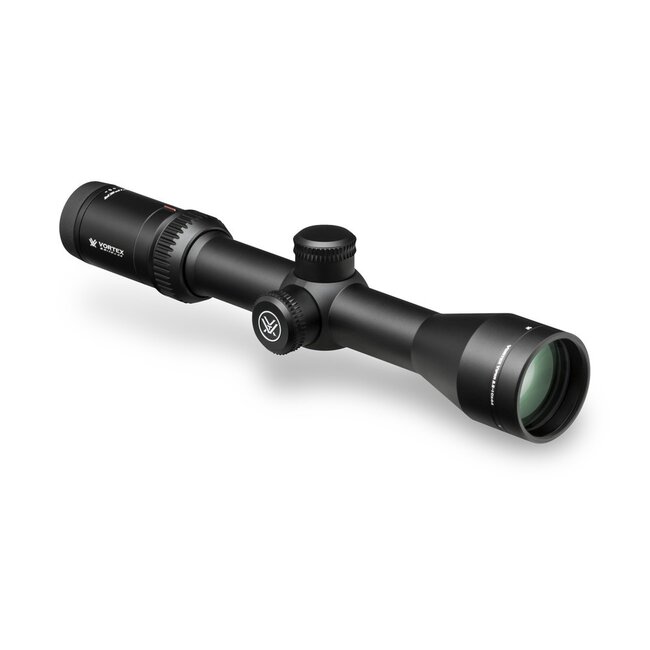

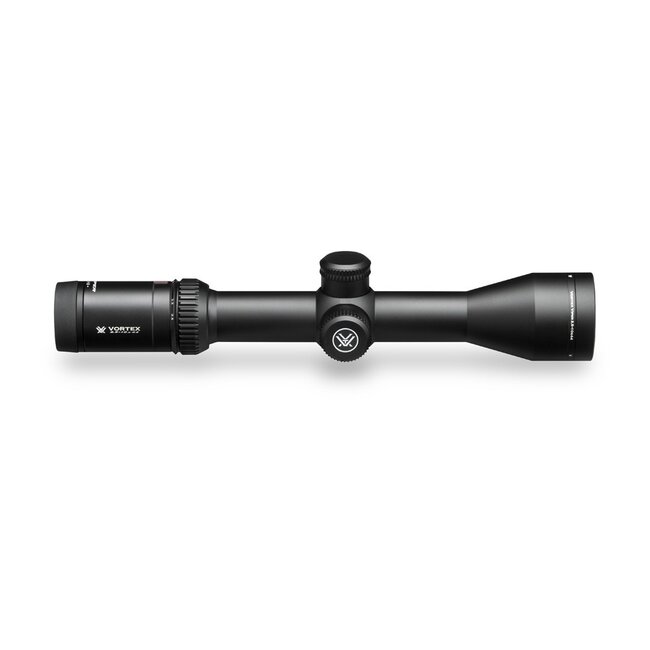

Vortex Viper HS riflescopes offer hunters and shooters an array of features sure to be well received. The advanced optical system, highlighted with a 4x zoom range, provides magnification versatility. A forgiving eye box with increased eye relief gets shooters on target quickly and easily. Built on an ultra-strong 30mm one-piece machined aluminum tube, the Viper HS delivers increased windage and elevation travel for optimal adjustment.
| Magnification | 2.5 – 10 |
|---|---|
| Objective Lens Diameter | 44 mm |
| Eye Relief | 4.0 inches |
| Field of View | 47–10.9 feet/100 yards |
| Tube Size | 30 mm |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel per Rotation | 12 MOA |
| Max Elevation Adjustment | 86 MOA |
| Max Windage Adjustment | 86 MOA |
| Parallax Setting | 100 yards |
| Length | 12 inches |
| Weight | 16.5 ounces |
Optical Features |
|
| XD Lens Elements | Extra-low dispersion (XD) glass increases resolution and colour fidelity, resulting in crisp, sharp images. |
| XR Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
Construction Features |
|
| Tube Size | 30 mm diameter. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable low-glare matte finish helps camouflage the shooter's position. |
| ArmorTek | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Capped Reset Turrets | Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret. |
Internal Mechanism Design Features |
|
| Precision-Force Spring System | Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment. |
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
Convenience Features |
|
| MAG-View Fiber Optic | Provides a highly visible reference point for the magnification setting. |
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |

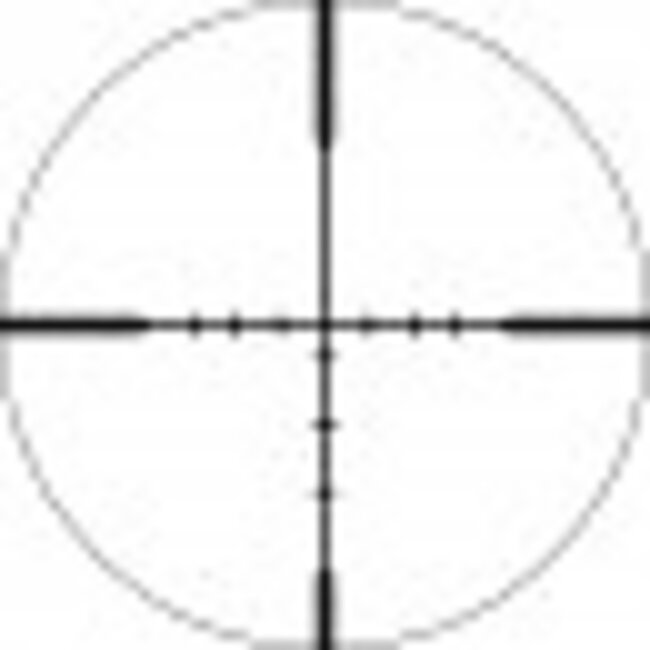

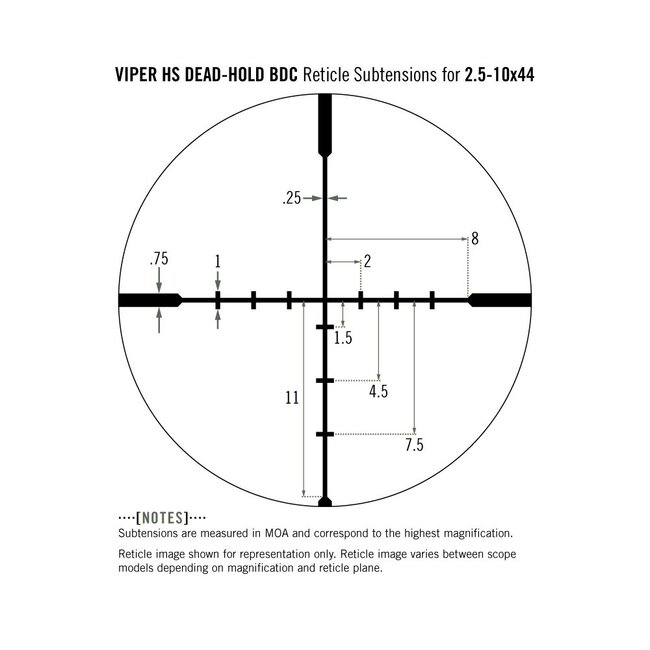

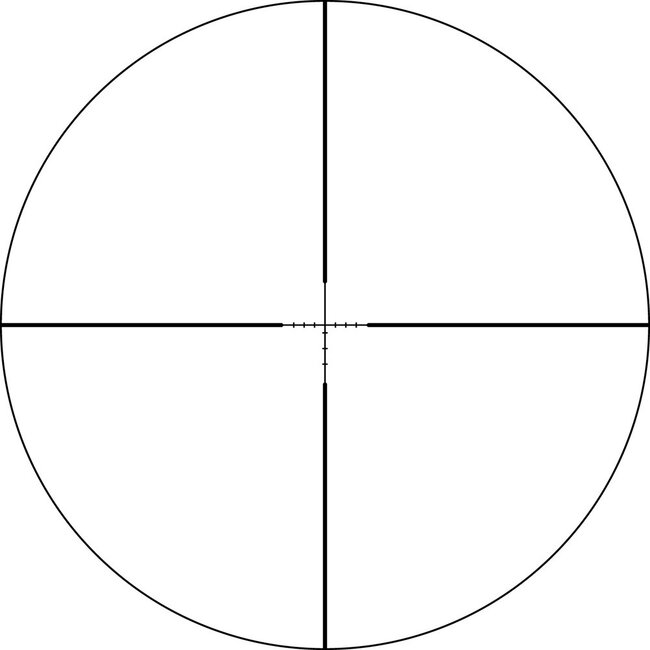

Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
