Diamondback riflescopes are loaded with features. First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more, but doesn't.
| SKU | VT-DBK-M-01P |
|---|---|
| Magnification | 3 – 9 |
| Objective Lens Diameter | 40 mm |
| Eye Relief | 3.3 inches |
| Field of View | 44.6–14.8 feet/100 yards |
| Tube Size | 1 inch |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel per Rotation | 15 MOA |
| Max Elevation Adjustment | 70 MOA |
| Max Windage Adjustment | 70 MOA |
| Parallax Setting | 100 yards |
| Length | 11.61 inches |
| Weight | 14.4 ounces |
| Lengths | |||||
| L1 | L2 | L3 | L4 | L5 | L6 |
| 11.61 | 2.0 | 2.1 | 5.4 | 3.07 | 3.1 |
| Heights | |
| H1 | H2 |
| 1.89 | 1.69 |
Dimensions measured in inches.
Optical Features |
|
| Fully Multi-Coated | Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
Construction Features |
|
| Tube Size | 1-inch diameter. |
| Single-Piece Tube | |

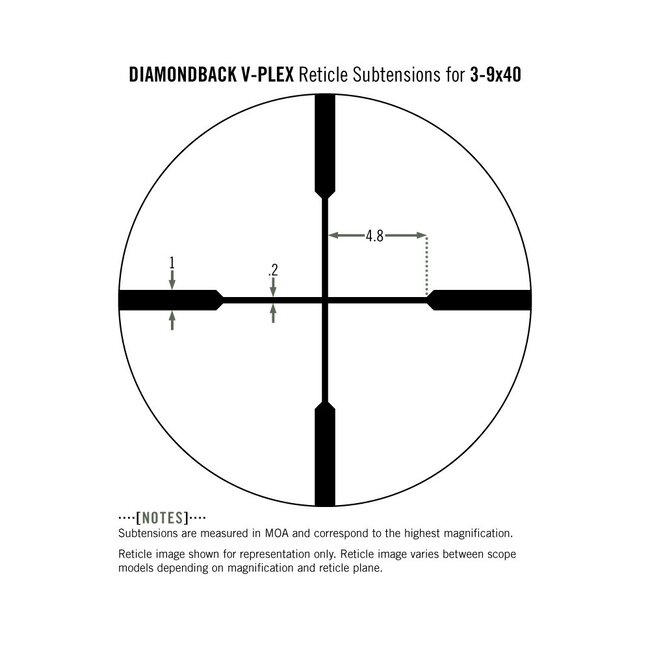

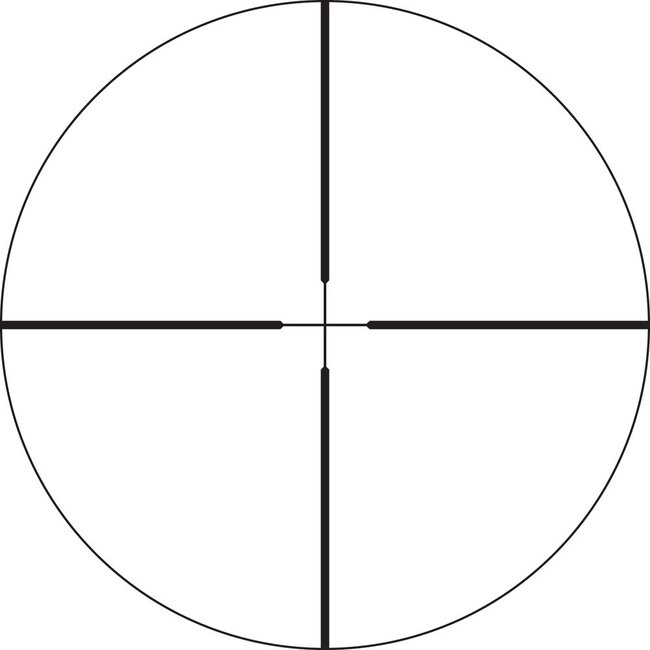

A popular all-purpose hunting reticle intended for a wide variety of hunting applications.
