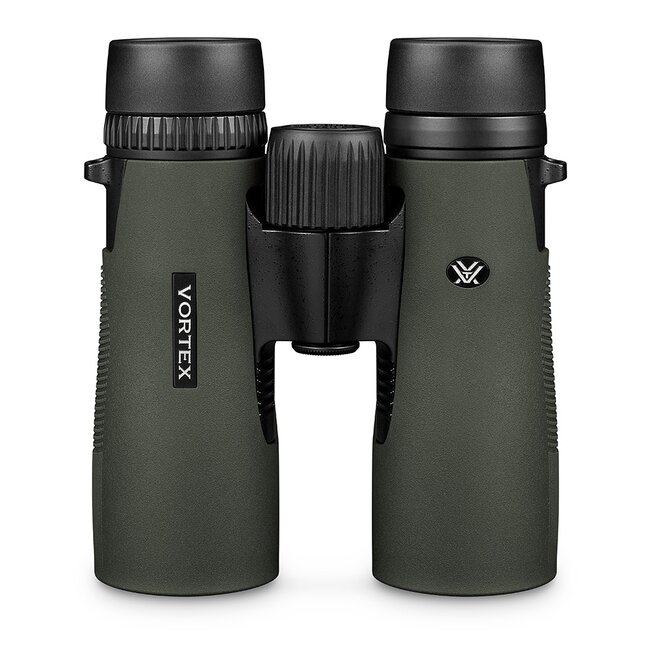

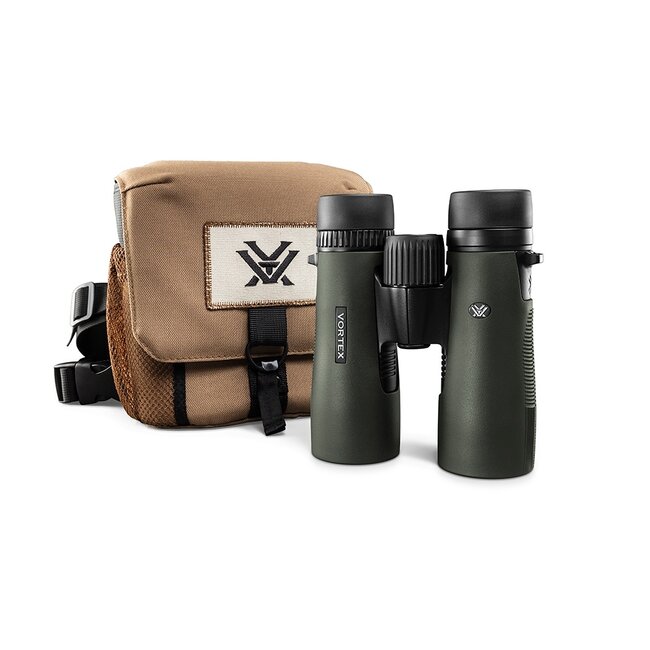

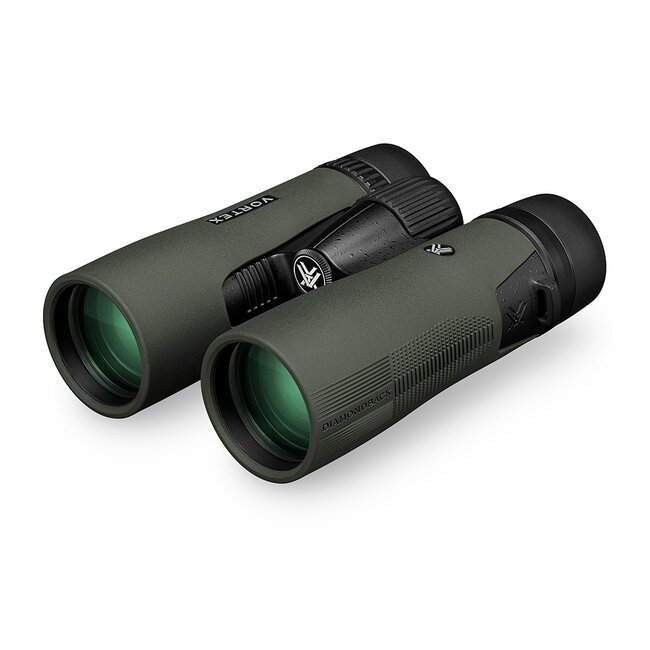

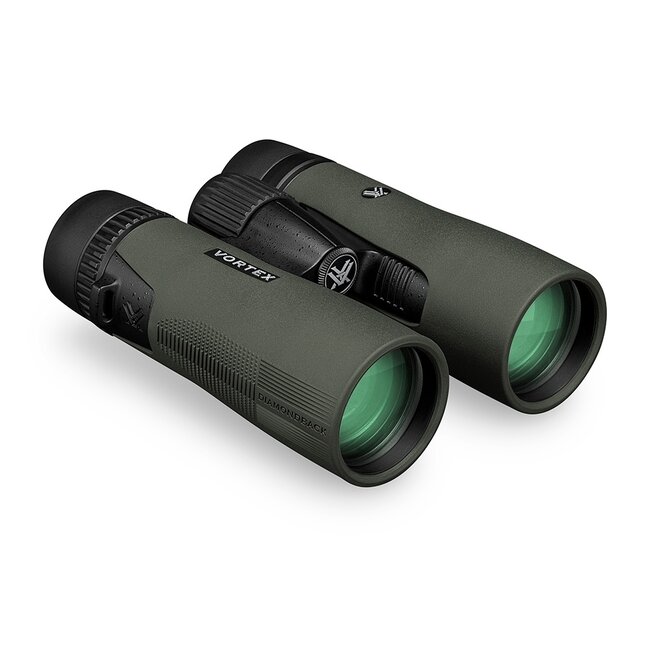

The Diamondback HD is a great example of Vortex’s commitment to pushing the price vs. performance envelope, delivering a rock-solid binocular that optically punches far beyond its class. The included GlassPak binocular harness keeps your glass close at hand, ready to deploy at a moment’s notice, all while providing protection and significantly more comfort than traditional neck straps.
| SKU |
VT-DB-214 |
| Magnification |
8 x |
| Objective Lens Diameter |
42 mm |
| Eye Relief |
17 mm |
| Exit Pupil |
5.25 mm |
| Linear Field of View |
393 feet/1000 yards |
| Angular Field of View |
7.5 degrees |
| Close Focus |
5.0 feet |
| Interpupillary Distance |
55 – 73 mm |
| Height |
5.7 inches |
| Width |
5.1 inches |
| Weight |
21.8 ounces |
| |
|
Optical Features
|
| HD Optical System |
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
| Fully Multi-Coated |
Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Dielectric Prism Coatings |
Multi-layer prism coatings provide bright, clear, colour-accurate images. |
| ArmorTek ® |
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
Construction Features
|
| Rubber Armor |
Provides a secure, non-slip grip, and durable external protection. |
| Waterproof |
O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
| Shockproof |
Rugged construction withstands recoil and impact. |
| Fogproof |
Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Roof Prism |
Valued for greater durability and a more compact size. |
Convenience Features
|
| Adjustable Eyecups |
Twist up and down to precise, intermediate settings to maximize custom fit for comfortable viewing with or without eyeglasses. |
| Centre Focus Wheel |
Adjusts the focus of both binocular barrels at the same time. |
| Diopter |
Adjusts for differences in a user's eyes. Located on right eyepiece. |
| Tripod Adaptable |
Compatible with a tripod adapter, allowing use on a tripod or car window mount. |
