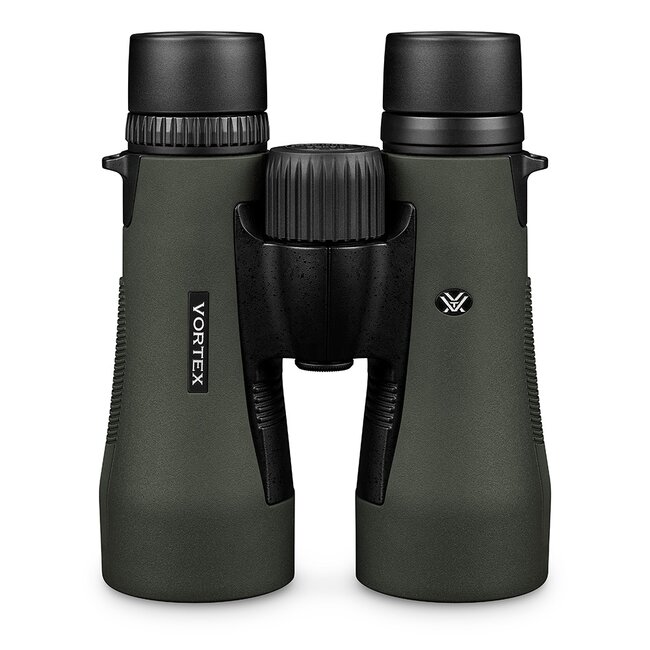

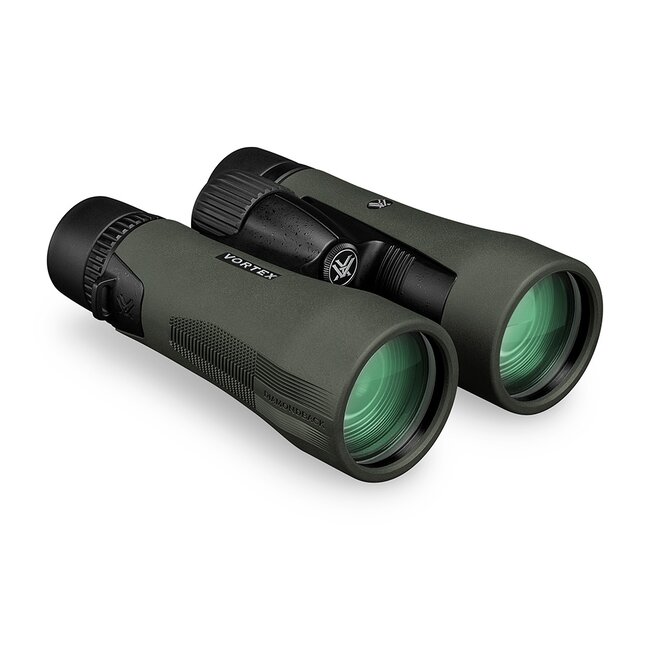

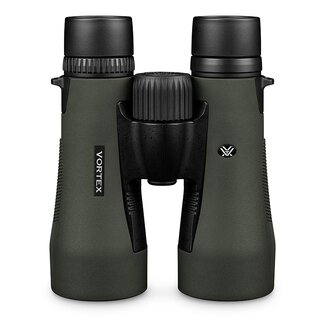

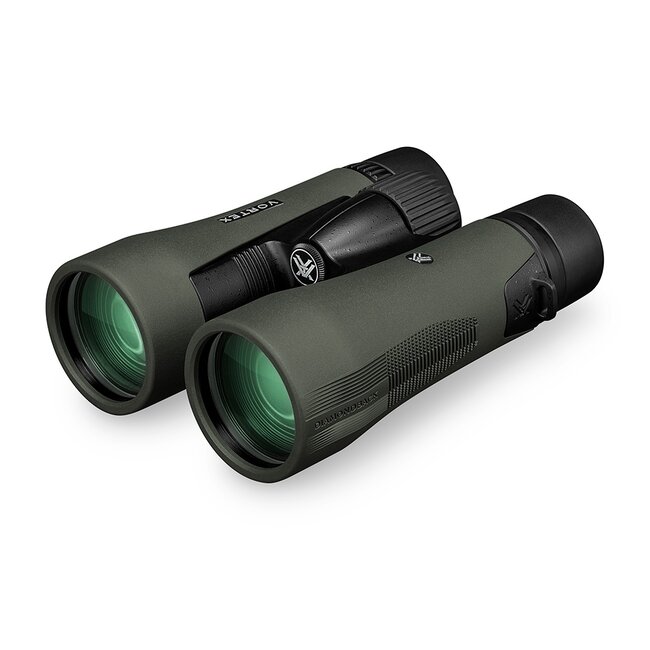

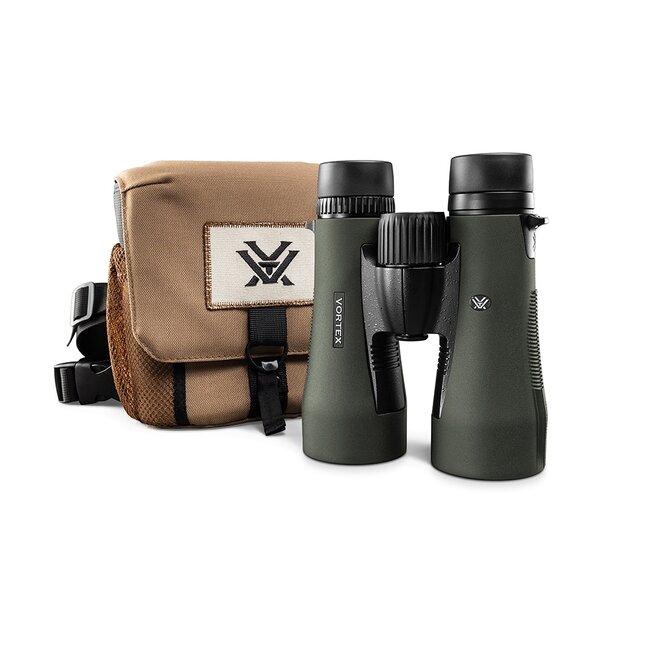

The Diamondback HD is a great example of Vortex’s commitment to pushing the price vs. performance envelope, delivering a rock-solid binocular that optically punches far beyond its class. The included GlassPak binocular harness keeps your glass close at hand, ready to deploy at a moment’s notice, all while providing protection and significantly more comfort than traditional neck straps.
| SKU |
VT-DB-216 |
| Magnification |
10 x |
| Objective Lens Diameter |
50 mm |
| Eye Relief |
17 mm |
| Exit Pupil |
5 mm |
| Linear Field of View |
315 feet/1000 yards |
| Angular Field of View |
6.0 degrees |
| Close Focus |
6.0 feet |
| Interpupillary Distance |
60 – 75 mm |
| Height |
6.6 inches |
| Width |
5.3 inches |
| Weight |
30.0 ounces |
| |
|
Optical Features
|
| HD Lens Elements |
HD (High Density) extra-low dispersion glass delivers impressive resolution and colour fidelity, resulting in High Definition images. |
| Fully Multi-Coated |
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Dielectric Prism Coatings |
Multi-layer prism coatings provide bright, clear, colour-accurate images. |
| Phase Correction |
Coating on roof prism models enhances resolution and contrast. |
Construction Features
|
| Roof Prism |
Valued for greater durability and a more compact size. |
| Waterproof |
O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
| Fogproof |
Argon gas purging prevents internal fogging over a wide range of temperatures. |
| ArmorTek |
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Rubber Armor |
Provides a secure, non-slip grip, and durable external protection. |
Convenience Features
|
| Adjustable Eyecups |
Twist up and down to precise, intermediate settings to maximize custom fit for comfortable viewing with or without eyeglasses. |
| Centre Focus Wheel |
Adjusts the focus of both binocular barrels at the same time. |
| Locking Diopter |
Adjusts for differences in a user's eyes. Located on right eyepiece. |
| Tripod Adaptable |
Compatible with a tripod adapter, allowing use on a tripod or car window mount. |
